Sunhans Original Signal Booster Dual Band High Gain 4g 65db 1800-2600mhz Repeater Cell Phone Amplifer
Description
- New brand Sunhans 4g repeater mobile phone signal booster u Frequency: 1800-2600MHz dual band signal booster ;High gain amplifier: 65dB ; One kit: antenna,cable, power supply included ;Certification: CE FCC RoHs ; Work in most countries

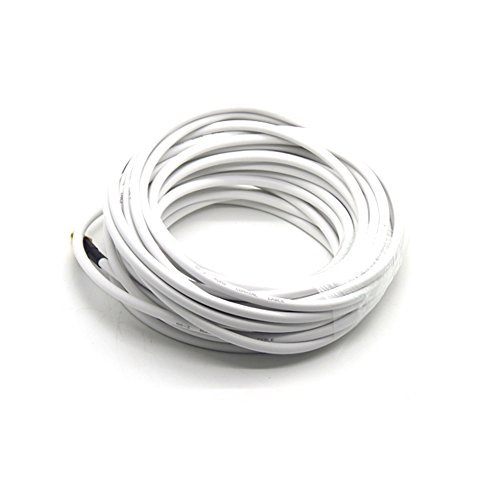

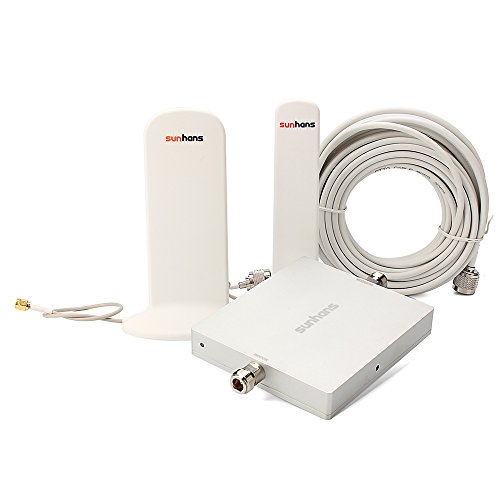

- 1800-2600MHz dual band 4G Signal Repeater ; External High Gain Outdoor/Indoor Antenna with short cable;10m Low Loss Coaxial Cable;100-240V AC Power Supply output 5V2A DC (Euro-plug,US-plug or other power supply adapter, you can choose) ; English User Manual
- 1. Install outdoor antenna at the place where has good signal, as high as possible. Fix it very well. 2. Connect outdoor antenna to "BTS" Port on the Booster through cable. 3. Connect indoor antenna(s) to "User" or "Mobile" Port on the Booster directly or through cable.also. 4. Plug Power Adaptor into AC power socket and finish installation.

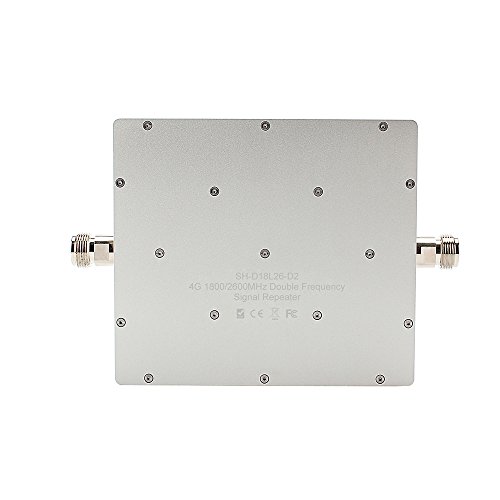

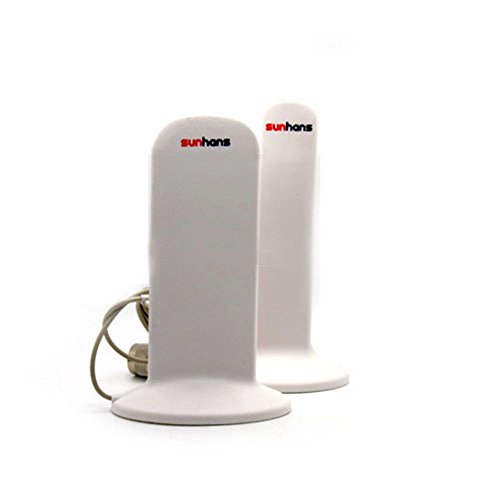

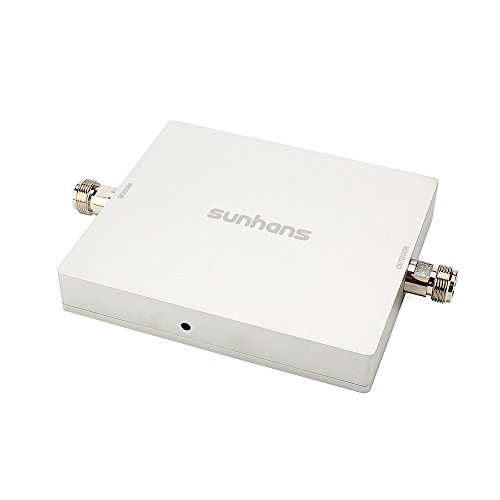

A) Mobile signal repeater 4G Repeater 1800MHz/ 2600MHz Up Link Frequency:1710 -1785MHz Down Link Frequency: 1805 - 1880MHz Up Link Frequency: 2500 - 2570MHz Down Link Frequency: 2620 - 2690MHz Model: SH-D18L26-D2 Power:-70~-40 dBm Up Link Gain: 62dB Down Link Gain: 65dB Max Output Power: +17dB for up link/+17dB fo Downlink Impedance: 50 Isolation: 70dB Power Supply:AC 100/240V (used AC/D Adapte 5Vd 2A) Compact Design: Indoor Use Item Dimension: 168 x 115 x 21 mm Certification: CE FCC RoHs B) Outdoor antenna 4G 850MHz/1800MHz/2600MHz Outdoor Antenna Model: SH-4GF2-A12 VSWR: Gain: 12dBi Polarization Type: Vertical Radiation: Omni Maximum Input Power: 10W Input Impedance: 50 Ohms Connector Type: RP-SMA male Cable Type: RG174(best) 100% cooper Cable Length: 30cm Dimensions: 17 x 10 x 5 cm Weight: 135,6g C) Indoor antenna Model:SH-4GF2-A8 VSWR:Gain:8dBi Polarization Type: Vertical Radiation:Omni Maximum Input Power:10W Input Impedance:50 Ohms Connector Type:N male Cable Type:RG174(best) 100% cooper Cable Length:1m Dimensions:17 x 8.3 x 5 cm Weight:119g
